Product Description
Outline dimension:
Feature:

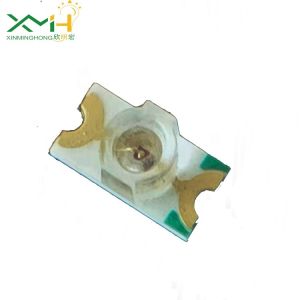

3.2mmx1.6mm SMD LED,1,1mm thickness
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
Mono-color type.
Pb-free.
The product itself will remain within RoHS compliant version.
Application:
Backlighting in dashboard and switch.
Telecommunication: indicator and backlighting in telephone and fax.
Flat backlight for LCD, switch and symbol.
General use.
Absolute Maximum rating:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit |
| Min | Typ | Max |
| Dominant wavelength | If=20mA | λd | 625 | 630 | 630 | nm |
| Forward voltage | If=20mA | Vf | 1.8 | 2.0 | 2.5 | v |
| Luminous intensity | If=20mA | Iv | 250 | | 630 | mcd |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | | 140 | | Deg |
| Resverse current | Vr=5v | Ir | | | 10 | mA |
