940nm Axial LED TR7 infrared transmitter infrared receiver LED Infrared Diode
TR7 infrared transmitter infrared receiver LED Infrared Diode 940nm Axial LED
Product Description of Axial 940nm IR Infrared LED
Absolute Maximum rating of Axial 940nm IR Infrared LED:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 100 | mW |
| Operationg temperature | Top | -40∼+80 | °C |
| ESD(Human-body mode | -- | 1.5 | KV |
| Storage temperature | Tstg | -40∼+100 | °C |
Electrical characteristicsof Axial 940nm IR Infrared LED:(Ta=25°C)
| Parameter | Test condition | Condition | Value | Unit |
| Min | Typ | Max |
| Collector-Eimmitter | Vce(sat) | Ic=2ma Ee=0mW/cm² | --- | --- | 0.4 | v |
| Forward voltage | If=20mA | Vf | 1.2 | --- | 1.8 | v |
| Wavelength of Peak Sensitivity | --- | λp | --- | 950 | --- | nm |
| Rang of spectral bandwidth | --- | λp | 930 | --- | 960 | nm |
| Collector Dark Current | Ee=1mW/cm² Vce=20V | Iceo | | | 100 | nA |

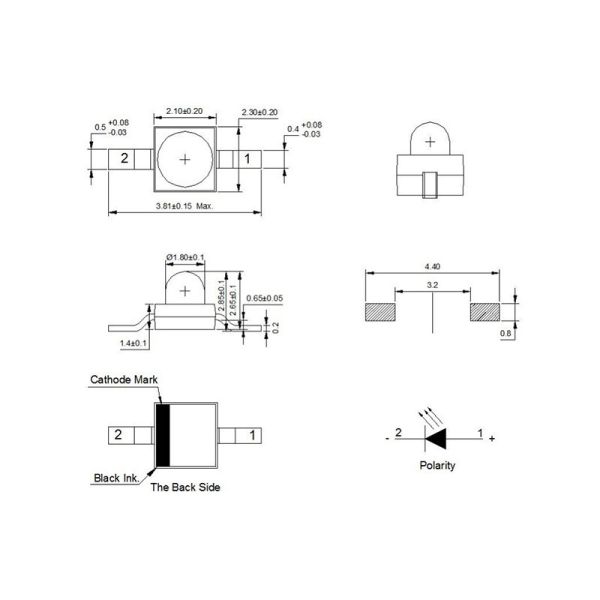

Outline dimensionof Axial 940nm IR Infrared LED:
Featureof Axial 940nm IR Infrared LED:
1. Fast response time
2. High sensitivity
3. Nodular capacitance
4.Environmental protection, in line with ROHS standards
Applicationof Axial 940nm IR Infrared LED:
1. For commercial use
2. Paper layout sensing
3. With the device receiving the signal
4. Fire smoke alarm
5. Vehicle rain and handling
6. Use for general sensing purposes
Related Products
Hot sales
Company Information
Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.
LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.
Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.
XMH provides excellent sales service and strong technical supports to our customers.
Our Advantages
High capacity
12000000pcs per day
High standard
Multiples sets of testing equipment and passed SGS authoristaion
OEM &ODM
Can be designed and produced according to customer requirement
Professional service team
Team with 20 years of management and production experience
FAQ
Why choose us?
Q1: Are you a manufacturer or a trading company ?
A1: We're professional manufacturer of Chip SMD LED, with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory. Our products have exported worldwidesince the year 2004.
Q2: How to choose LED light source ?
A2: Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
Q3. How to proceed an order for led light?
A3: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5. How do you ship the goods?
A5: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Packaging & Shipping
PACKAGE:
Single package size: 21X24X1 cm
Package Type: 1000pcs / reel, 40bags / carton & According To The Request.
Inner packaging: Anti-static Bag Packaging
Outer packaging: Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
